816551N

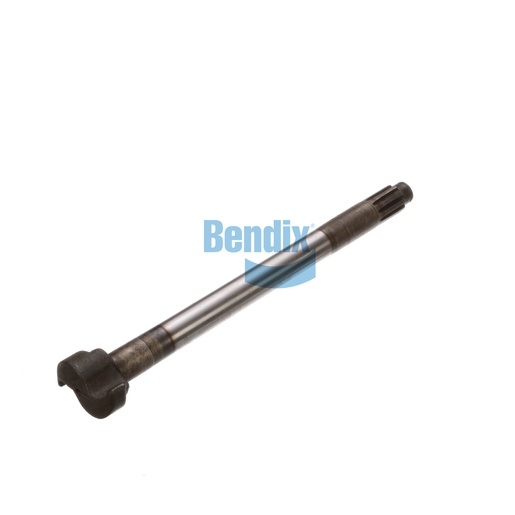

Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Camshaft is a critical component in your truck's brake system, ensuring that your brakes engage efficiently and effectively. Designed with precision, this camshaft features a clockwise rotation and is compatible with 16.5-inch brake sizes from Eaton. Its robust construction and attention to detail ensure that it can withstand the rigors of heavy-duty use, providing reliable performance under pressure. With a length of 18.625 inches, this camshaft is engineered to fit seamlessly within your braking system, facilitating optimal brake function and responsiveness. By choosing this camshaft, you're investing in a part that enhances the safety and reliability of your vehicle. For the best selection of genuine Bendix OEM parts, look no further than Source One Parts Center, where quality and service meet.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
18.625
Camshaft Under Head Length [IN]
18.835
Harmonized System (HS) Code
870830
Rotation
Clockwise (CW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
14.99 lb
