816656N
Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

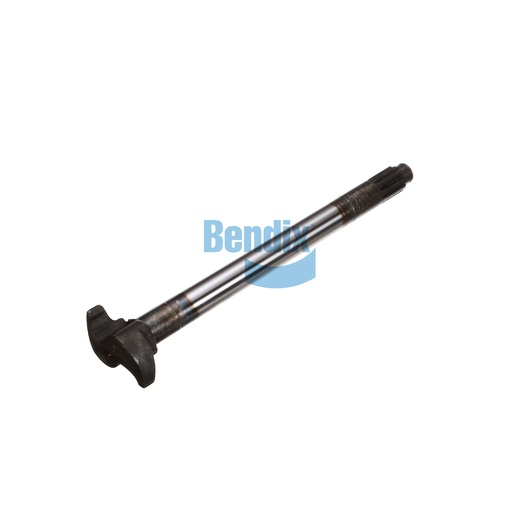

The Camshaft from Bendix is a key component designed to optimize the performance of your commercial vehicle's braking system. With a counterclockwise rotation and a brake size of Ø 16.5 inches, it ensures effective engagement and reliable operation. Engineered with a spline diameter of 1.50 inches and a length of 18.335 inches, this camshaft is built to withstand the rigors of heavy-duty applications. Weighing 6.8 kg, it provides the ideal balance between strength and functionality. For superior quality and reliability, choose genuine Bendix parts from Source One Parts Center.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
18.125
Camshaft Under Head Length [IN]
18.335
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
14.99 lb
