816657N
Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

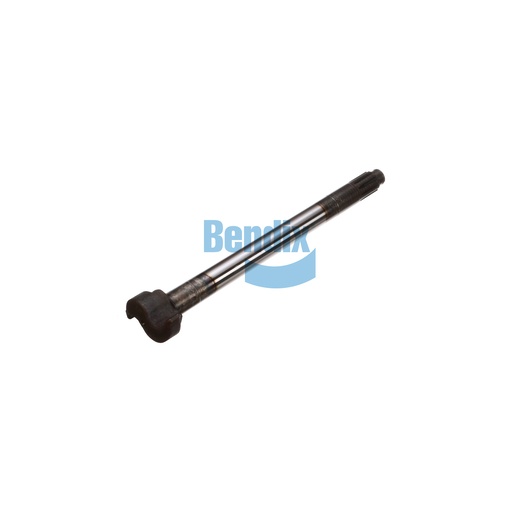

The Camshaft is a pivotal component in the drum brake system, responsible for transmitting force from the brake actuator to the brake shoes. This part is designed to deliver consistent and reliable performance, ensuring that the brakes engage properly and effectively stop the vehicle when needed. With its durable construction, the camshaft is built to withstand heavy loads and high-stress environments, contributing to the overall safety and reliability of the braking system. Its precision engineering allows for smooth operation and minimal wear, which enhances the longevity of the entire brake assembly. For fleet operators, investing in quality camshafts like this one is essential for maintaining optimal vehicle performance. To secure top-quality genuine Bendix parts, look no further than Source One Parts Center, where authenticity and quality are guaranteed.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
18.125
Camshaft Under Head Length [IN]
18.335
Harmonized System (HS) Code
870830
Rotation
Clockwise (CW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
14.99 lb
