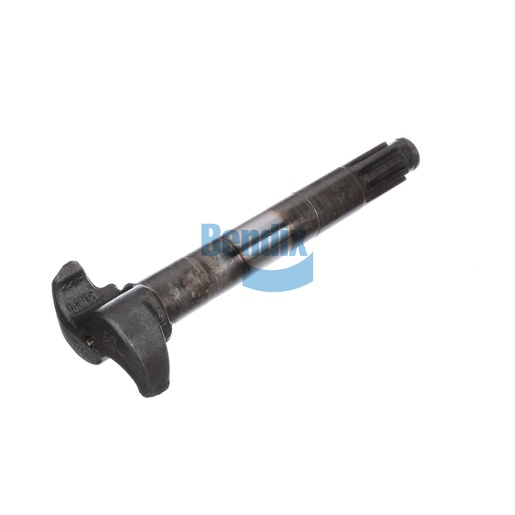

816964N
Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Camshaft is a vital component of the drum brake system, providing the necessary mechanical advantage to operate the brake shoes effectively. Designed for durability and precision, this camshaft features a counterclockwise rotation and is compatible with a brake size of Ø 16.5 IN. With a net weight of 6.4 kg, it is robust enough to withstand the rigors of commercial truck applications while ensuring optimal braking performance. Its thoughtful engineering includes a spline diameter of Ø 1.50 IN with 10 splines, allowing for secure connections and smooth operation. By investing in a genuine Bendix Camshaft, you can enhance the safety and reliability of your braking system. For the best selection of Bendix parts, Source One Parts Center is the leading source for all your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
10.687
Camshaft Under Head Length [IN]
10.897
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
14 lb
