816967N
Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

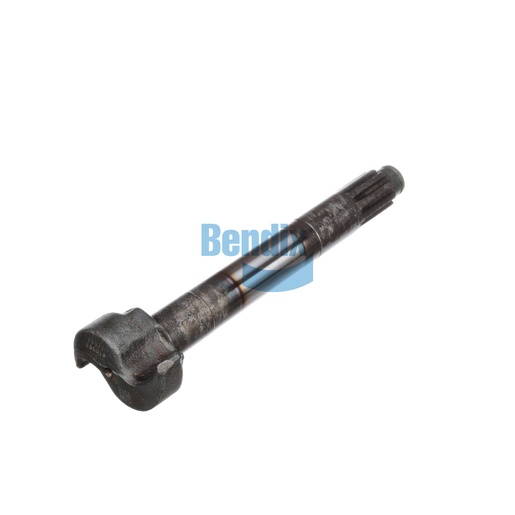

The Bendix Camshaft is a critical component in the braking system, designed for durability and performance in heavy-duty applications. This camshaft, weighing 3.4 kg (7.5 lb), is engineered to provide reliable operation, ensuring effective engagement of the brake shoes for optimal stopping power. It features a clockwise rotation and is compatible with a variety of brake systems, making it a versatile choice for different commercial vehicles. The robust construction of this camshaft guarantees longevity, reducing the need for frequent replacements and maintenance. Regular inspection and replacement of worn components like the camshaft are essential to maintain the safety and efficiency of your braking system. For sourcing genuine Bendix OEM parts, Source One Parts Center is the best option, providing high-quality components that ensure your commercial vehicles remain safe and efficient on the road.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
11.312
Camshaft Under Head Length [IN]
11.522
Harmonized System (HS) Code
870830
Head Type
Clipped
Rotation
Clockwise (CW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
7.5 lb
