816969N

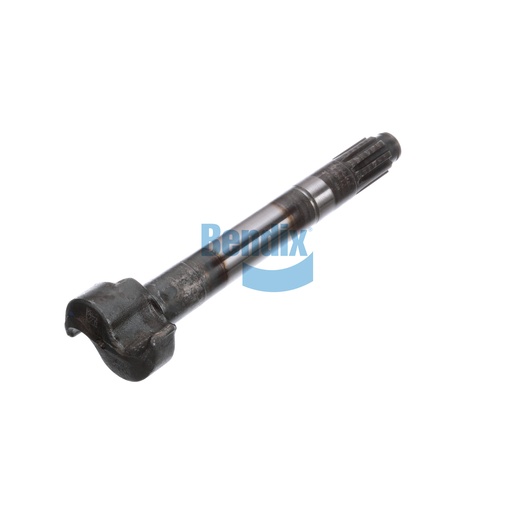

Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance your braking system's performance with the Bendix Camshaft, engineered for precision and reliability in foundation drum brake applications. This camshaft is designed to deliver optimal force, ensuring efficient brake operation and improved safety for heavy-duty vehicles. With a clockwise rotation and a standard head type, it is made to fit seamlessly into various brake systems, providing a straightforward installation process. The camshaft is built from high-quality materials to withstand the extreme conditions of commercial use, ensuring longevity and reducing the frequency of replacements. Its technical design enables smooth operation, contributing to the overall efficiency of your vehicle's braking system. For sourcing genuine Bendix parts like this camshaft, Source One Parts Center is your premier destination, offering top-quality components for commercial vehicle applications.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
11.687
Camshaft Under Head Length [IN]
11.897
Harmonized System (HS) Code
870830
Head Type
Clipped
Rotation
Clockwise (CW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
7.78 lb
