817511N

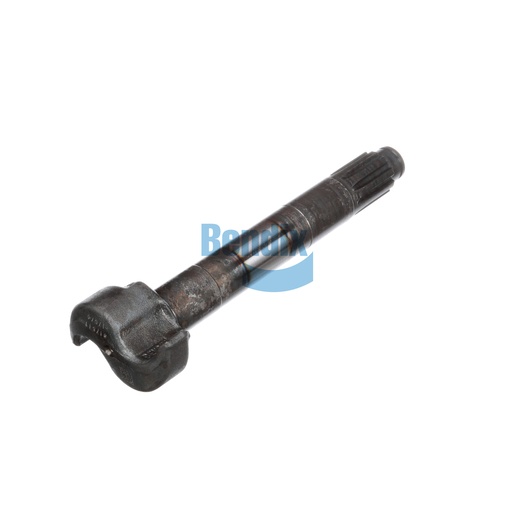

Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Camshaft is a critical component in your truck's foundation drum brake system, providing the necessary leverage to activate the brakes effectively. Designed for durability and precision, this camshaft ensures optimal brake performance under varying loads and conditions. With its robust construction, it can withstand the demanding environments typical in commercial transportation. The 16.5-inch brake size and the specific spline diameter enable compatibility with a range of brake systems, making it an essential part of your vehicle's braking mechanism. Regular inspection and replacement of worn camshafts are vital for maintaining braking efficiency and vehicle safety. Choose Source One Parts Center for your Bendix OEM parts needs, where you’ll find the best selection and quality for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
10.187
Camshaft Under Head Length [IN]
10.397
Harmonized System (HS) Code
870830
Rotation
Clockwise (CW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
7.14 lb
