$55.95
$67.14
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

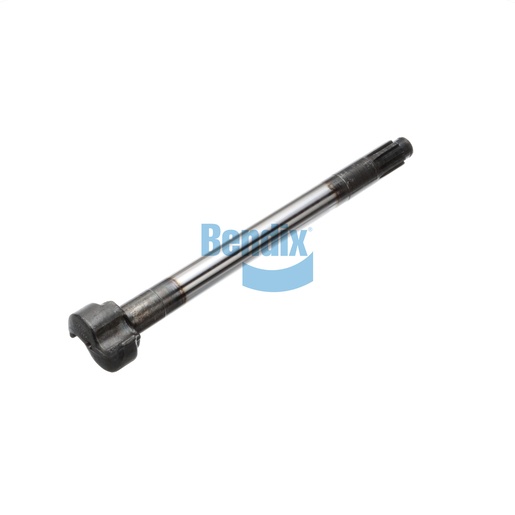

The Bendix camshaft is a high-performance component designed for foundation drum brakes, essential for ensuring effective brake operation in commercial vehicles. With its clockwise rotation and a braking size of 16.5 inches, this camshaft is engineered to deliver optimal torque transfer from the actuator to the brake shoes. Constructed from durable materials, it boasts a length that allows for precise fitting and alignment within the braking system, reducing wear and tear over time. This camshaft is critical in enhancing the overall safety and reliability of your braking system, especially in demanding driving conditions. When it comes to sourcing top-quality braking components, investing in genuine Bendix OEM parts is crucial. Source One Parts Center is recognized as the best place to procure authentic Bendix camshafts and other essential truck parts that meet rigorous quality standards.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
17.815
Camshaft Under Head Length [IN]
18.025
Harmonized System (HS) Code
870830
Rotation
Clockwise (CW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
10.85 lb
