817703N

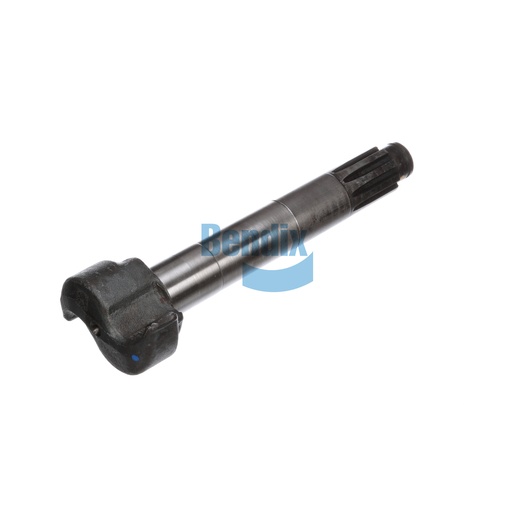

Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Improve your vehicle's braking performance with the Bendix Camshaft, designed specifically for foundation drum brakes. This essential component ensures proper actuation of the brake shoes, allowing for effective and reliable braking. With a clockwise rotation and a brake size of 16.5 inches, it is engineered to meet the demands of heavy-duty applications, providing the necessary strength and durability for commercial use. The camshaft's robust construction, weighing 6.6 lbs, ensures longevity even under rigorous conditions. For optimal performance and safety, regular inspection and maintenance of this camshaft are recommended. Choose Source One Parts Center for all your Bendix OEM parts needs, where quality meets reliability for your commercial vehicle applications.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Harmonized System (HS) Code
870830
Camshaft Length (Head to Retaining Ring Groove) [IN]
9.125
Camshaft Under Head Length [IN]
9.335
Rotation
Clockwise (CW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
6.6 lb
