$124.95
$149.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

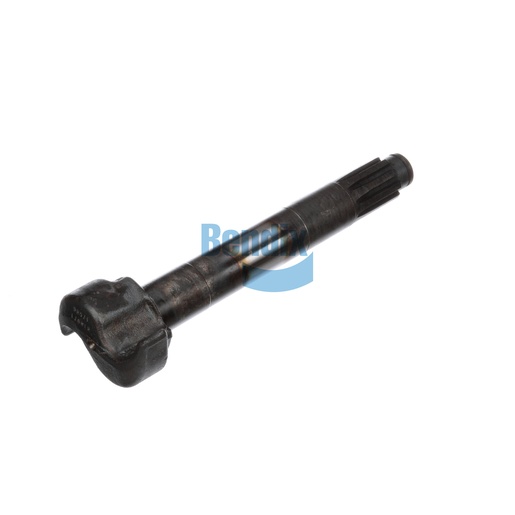

The Bendix camshaft is a vital component in foundation drum brakes, designed to provide the necessary mechanical advantage for effective braking. Weighing 3.2 kg, this camshaft features a clockwise rotation and is manufactured in the United States for optimal performance and durability. Its precision design ensures seamless integration with the braking system, enhancing the overall safety and control of the vehicle. Ideal for heavy-duty applications, this camshaft minimizes maintenance needs and ensures reliable functionality under various conditions. For those in search of quality truck parts, Source One Parts Center is the ultimate destination to purchase genuine Bendix OEM components, guaranteeing top performance for your vehicle.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
10.152
Camshaft Under Head Length [IN]
10.362
Harmonized System (HS) Code
870830
Rotation
Clockwise (CW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
6.99 lb
