819554N
Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

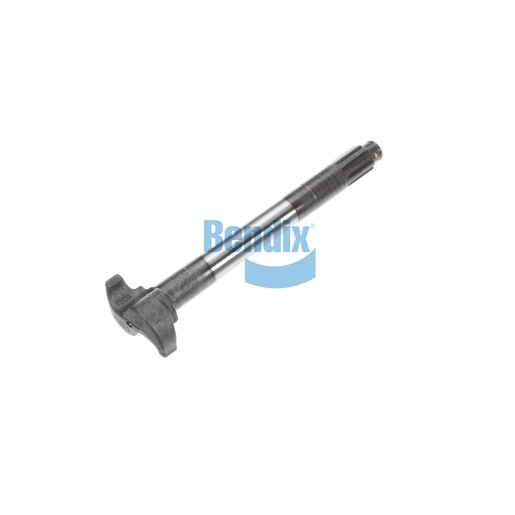

The Bendix camshaft is a crucial component for your foundation drum brakes, providing reliable and effective operation for commercial trucks. Designed for a counterclockwise rotation, this camshaft is compatible with a brake size of 16.5 inches and is built to withstand the rigors of demanding environments. Weighing 3.6 kg (7.98 lb), it features a robust construction with a diameter at the spider of 1.50 inches, ensuring durability and longevity. Its precise engineering allows for smooth engagement and disengagement of the brakes, enhancing your vehicle's responsiveness and safety. With genuine Bendix camshafts, you can maintain the integrity of your braking system and improve overall vehicle performance. When it comes to authentic Bendix OEM parts, Source One Parts Center stands out as the best choice, providing excellent service and a broad inventory for your needs.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
13.875
Camshaft Under Head Length [IN]
14.085
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
7.98 lb
