819583N

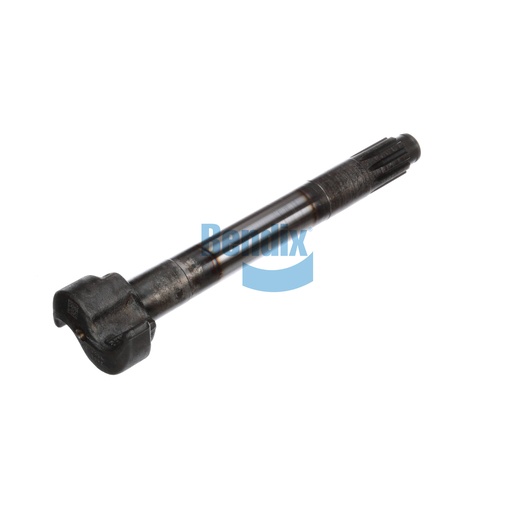

Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Camshaft is a vital component of your vehicle's braking system, designed for durability and precision. Weighing 3.7 kg and engineered in the United States, this camshaft ensures optimal performance under the rigors of heavy-duty applications. Its clockwise rotation allows for effective conversion of rotational motion into necessary braking action, making it a crucial part of your foundation drum brakes. By choosing genuine Bendix OEM parts, you can enhance the reliability and efficiency of your braking system. For authentic and high-quality components, Source One Parts Center is your ideal destination, providing the parts necessary to keep your commercial vehicles safe and operational.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
12.375
Camshaft Under Head Length [IN]
12.585
Harmonized System (HS) Code
870830
Rotation
Clockwise (CW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
8.09 lb
