973519N

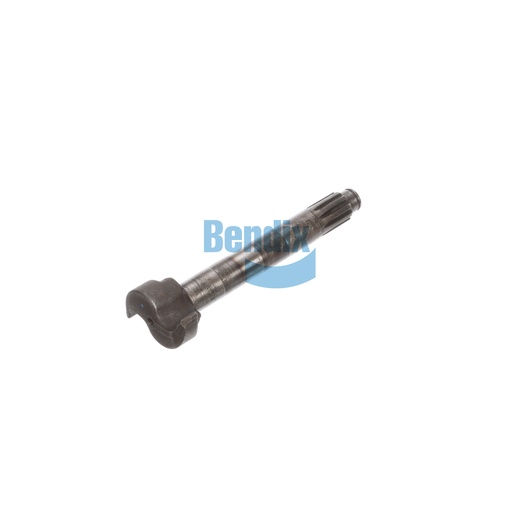

Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Camshaft is a critical component that plays a vital role in the functionality of your foundation drum brakes. Engineered in the United States, this camshaft is designed for durability and precision, ensuring optimal performance in heavy-duty applications. Weighing in at 3.2 kg, it features a clockwise rotation and is compatible with various brake systems. The camshaft is essential for converting the rotational motion into the linear motion needed for effective braking action. By investing in genuine Bendix OEM parts like this camshaft, you ensure that your braking system operates efficiently and safely. For the best selection of quality Bendix components, Source One Parts Center is the go-to source for parts you can trust.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
10.152
Camshaft Under Head Length [IN]
10.362
Harmonized System (HS) Code
870830
Head Type
Clipped
Rotation
Clockwise (CW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
6.99 lb
