974025N
Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

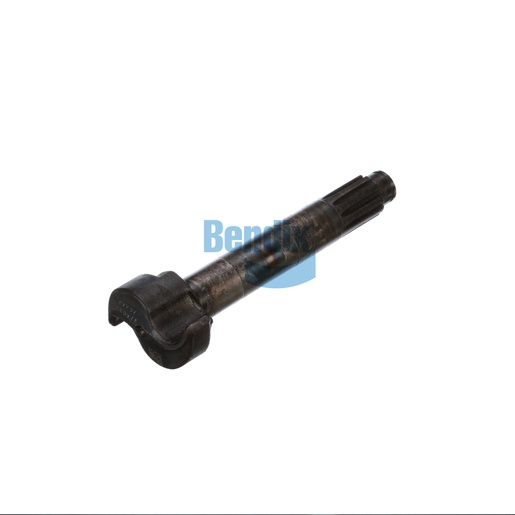

Experience the strength and reliability of the Bendix camshaft, an integral part of the drum brake system. With a net weight of 5.5 kg, this camshaft is designed to optimize brake function, ensuring quick and efficient stopping power under heavy loads. Engineered for compatibility with various brake sizes, it features a clockwise rotation and a sturdy construction that withstands the demands of commercial driving. The camshaft's precision design helps to reduce wear on other braking components, prolonging their lifespan and enhancing overall vehicle safety. When it comes to sourcing genuine Bendix OEM parts, trust Source One Parts Center for the best selection and service.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
8.749
Camshaft Under Head Length [IN]
8.959
Harmonized System (HS) Code
870830
Head Type
Clipped
Rotation
Clockwise (CW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
12.02 lb
