974489N

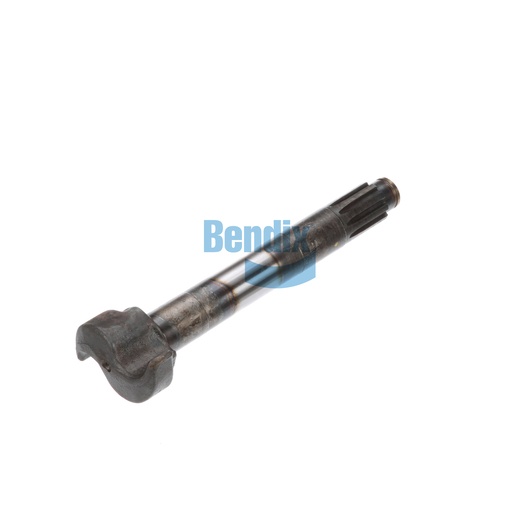

Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Camshaft is a key component of the foundation drum brake system, designed to transmit the necessary force to actuate the brake shoes effectively. This high-quality camshaft features a clockwise rotation and is engineered for robust performance with a brake size of 16.5 inches. Weighing 3.3 kg (7.2 lb), its durable construction ensures longevity and reliability, essential for the heavy demands of commercial vehicle braking systems. The camshaft is compatible with various Bendix brake applications, making it a versatile choice for maintenance and replacements. For those seeking genuine Bendix parts, Source One Parts Center is the best resource, offering quality you can trust.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
10.562
Camshaft Under Head Length [IN]
10.772
Harmonized System (HS) Code
870830
Head Type
Clipped
Rotation
Clockwise (CW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
7.2 lb
