976783N

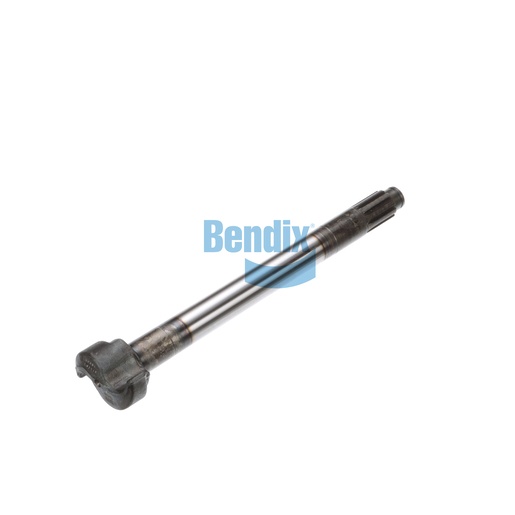

Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance your braking performance with the Bendix Camshaft, a critical component for foundation drum brakes. This camshaft is designed for durability and reliability, ensuring your braking system operates efficiently under heavy loads. With a net weight of 6.8 kg, it is engineered to withstand the demanding environments typical of commercial vehicle applications. The camshaft's precise design allows for smooth operation and effective braking response, contributing to improved safety and control. This camshaft is compatible with a variety of brake systems, making it a versatile choice for fleet maintenance and repairs. When you need reliable components for your braking system, Source One Parts Center is your best option for genuine Bendix OEM parts that ensure the highest quality and performance.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
16.251
Camshaft Under Head Length [IN]
16.461
Harmonized System (HS) Code
870830
Rotation
Clockwise (CW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
14.99 lb
