K020356

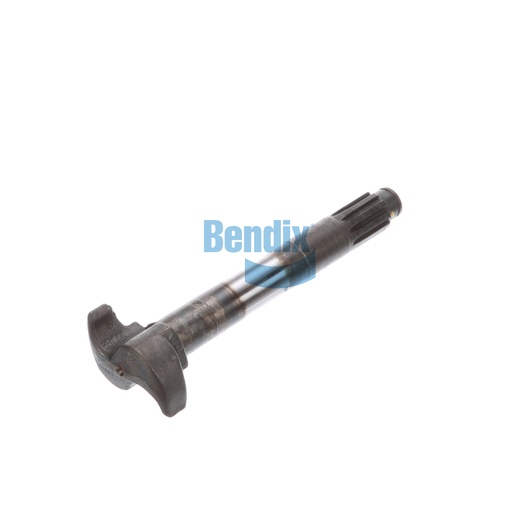

Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Camshaft by Bendix plays a pivotal role in the operation of the brake system, ensuring efficient actuation of the brakes. Designed for heavy-duty applications, this camshaft features a counterclockwise rotation and is engineered for compatibility with a 16.5-inch brake size. With a robust construction, it withstands the rigors of commercial use, ensuring reliable performance and extended service life. Weighing 7.23 lb, this camshaft is a critical component for maintaining the integrity of your braking system. For sourcing genuine Bendix parts, Source One Parts Center is the top destination for quality and dependability.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
10.505
Camshaft Under Head Length [IN]
10.715
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
7.23 lb
