K032002

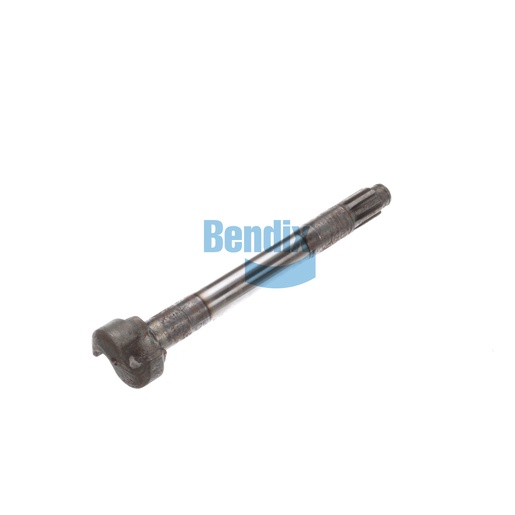

Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Camshaft is a critical component in your foundation drum brakes, engineered to deliver reliable performance and durability. Designed for a brake size of 16.5 inches, this camshaft features a clockwise rotation and is made with high-quality materials to ensure longevity under heavy use. With a net weight of 4.1 kg, it is designed for easy installation and efficient operation. Trust Source One Parts Center for your genuine Bendix parts, ensuring your braking system operates safely and effectively.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
14.125
Camshaft Under Head Length [IN]
14.335
Harmonized System (HS) Code
870830
Rotation
Clockwise (CW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
9.05 lb
