DESCRIPTION

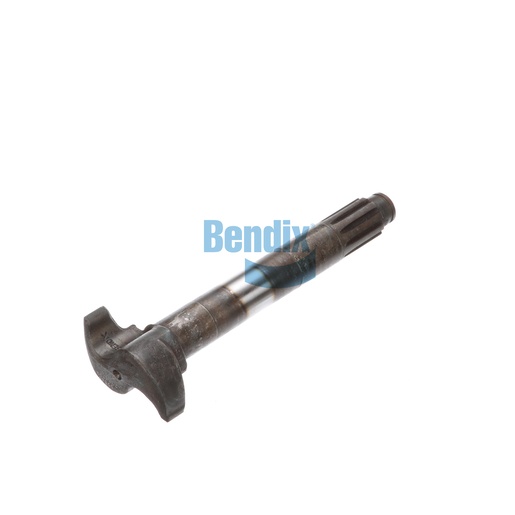

The Bendix Camshaft is a critical component in your vehicle's braking system, designed to ensure effective and reliable operation of the drum brakes. Manufactured in the United States, this precision-engineered camshaft features a counterclockwise rotation and is compatible with various brake sizes, making it a versatile choice for fleet operators. With a diameter at the spider of 1.50 inches and a spline diameter of 1.50 inches with 10 splines, it ensures seamless integration into the braking system. This camshaft is designed for durability, capable of withstanding the rigors of heavy-duty applications. By investing in genuine Bendix OEM parts, you are ensuring the reliability and performance of your vehicle's braking components. Source One Parts Center is your trusted source for authentic Bendix parts, providing quality solutions for your commercial vehicle maintenance.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
10.152
Camshaft Under Head Length [IN]
10.362
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Brake Manufacturer
Eaton
Head Type
Precision
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
13.23 lb
