DESCRIPTION

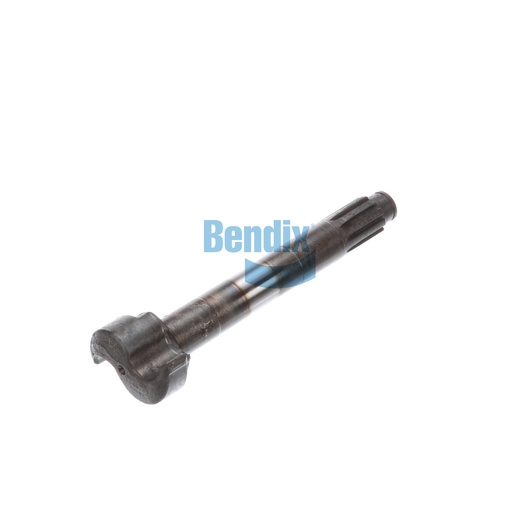

The Camshaft is an essential element in Bendix Foundation Drum Brakes, designed to optimize braking performance and safety. This precision-engineered part ensures reliable operation, allowing your vehicle to stop effectively under various driving conditions. With its high-quality construction, the camshaft contributes to the durability and efficiency of your braking system, making it a key component for any commercial vehicle. For genuine Bendix OEM parts, Source One Parts Center is the best choice, providing quality and support you can trust.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
10.152
Camshaft Under Head Length [IN]
10.362
Harmonized System (HS) Code
870830
Rotation
Clockwise (CW)
Brake Manufacturer
Eaton
Head Type
Precision
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
7.11 lb
