K075947
Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

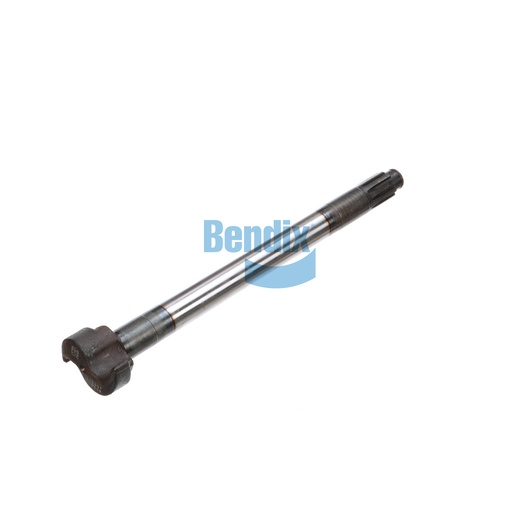

Bendix's Camshaft is a critical component of the foundation drum brake system, engineered for superior performance and reliability. With a clockwise rotation and a diameter of 1.50 inches, this camshaft is designed to enhance the efficiency of your braking system, ensuring prompt response and effective stopping power. The robust construction and high-quality materials used in this camshaft guarantee durability, making it ideal for heavy-duty applications. Weighing only 11.23 lbs, this camshaft is lightweight yet strong enough to withstand the demands of commercial vehicle operation. For sourcing genuine Bendix OEM parts, Source One Parts Center is your best choice, offering exceptional quality and customer service.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
18.250
Camshaft Under Head Length [IN]
18.460
Harmonized System (HS) Code
870830
Rotation
Clockwise (CW)
Brake Manufacturer
Eaton
Country of Origin
United States
Diameter at Spider
Ø 1.50 IN
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Brake Size
Ø 16.5 IN
Weight
11.23 lb
