K117574N
Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

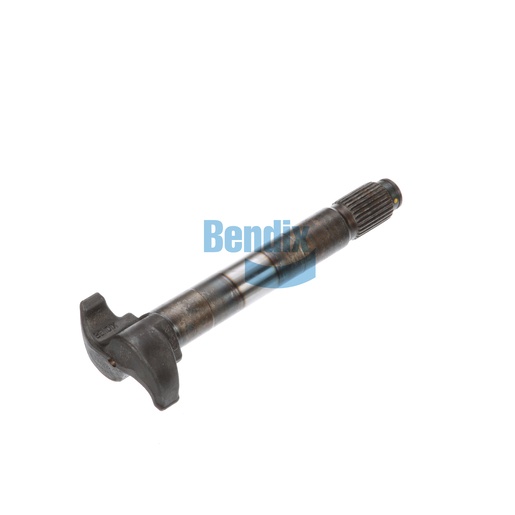

The Camshaft is a critical component in the brake system, responsible for transferring force from the brake actuator to the brake shoes. Engineered for durability and performance, this camshaft features a counterclockwise rotation and a spline diameter with 28 teeth, ensuring precise engagement with other braking components. With a length of 10.375 inches, it is designed to fit a variety of brake configurations, providing reliable operation in demanding conditions. Constructed from high-quality materials, it is built to withstand the rigors of commercial use, ensuring long-lasting performance. For those seeking dependable brake parts, Source One Parts Center is the premier destination for genuine Bendix OEM parts, guaranteeing you receive components that meet the highest standards of quality and reliability.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
10.375
Height
109.0 mm (4.29 in)
Width
109.0 mm (4.29 in)
Length
264.0 mm (10.39 in)
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Country of Origin
United States
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
7.3 lb
