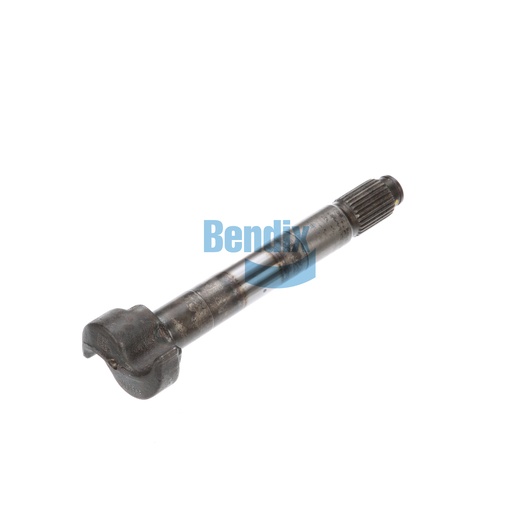

K117585N
Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Camshaft is an integral part of your vehicle's braking system, specifically designed for foundation drum brakes. This high-quality camshaft ensures precise movement and operation of the brake shoes, enhancing the overall effectiveness of the braking system. Built to withstand the demands of heavy-duty use, this component features a clockwise rotation and a spline diameter of 1.50 inches with 28 teeth, ensuring compatibility with various brake assemblies. Weighing 7.52 pounds, it strikes an ideal balance between weight and durability, making it a reliable choice for fleet maintenance. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center stands out as the best option, providing superior products and customer satisfaction.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
10.625
Height
109.0 mm (4.29 in)
Width
109.0 mm (4.29 in)
Length
270.0 mm (10.63 in)
Harmonized System (HS) Code
870830
Rotation
Clockwise (CW)
Country of Origin
United States
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
7.52 lb
