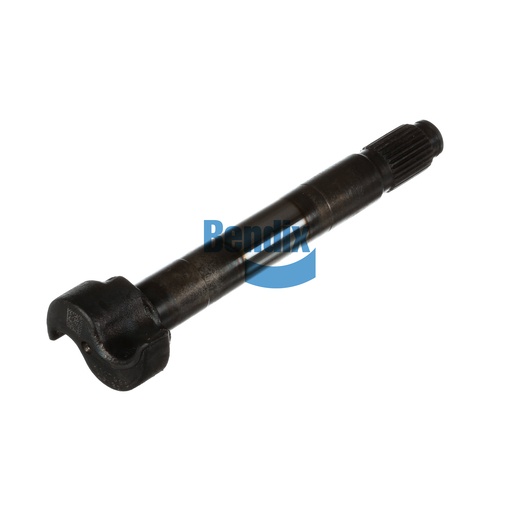

K117595N
Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Camshaft is a key component of the foundation drum brake system, designed to translate rotational motion into the linear force required for effective braking. With a clockwise rotation and a spline diameter of 1.50 inches with 28 splines, this camshaft ensures precise control and responsiveness, critical for safety during operation. Made from high-strength materials, it is engineered to resist wear and tear, providing consistent performance over its lifespan. At a length of approximately 10.94 inches, it fits a variety of brake systems, making it a versatile choice for fleet maintenance. By investing in high-quality camshafts, you enhance the reliability of your braking system. For genuine Bendix OEM parts, Source One Parts Center is the trusted choice for commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
10.937
Height
109.0 mm (4.29 in)
Width
109.0 mm (4.29 in)
Length
278.0 mm (10.94 in)
Harmonized System (HS) Code
870830
Rotation
Clockwise (CW)
Country of Origin
United States
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
10.58 lb
