K117604N

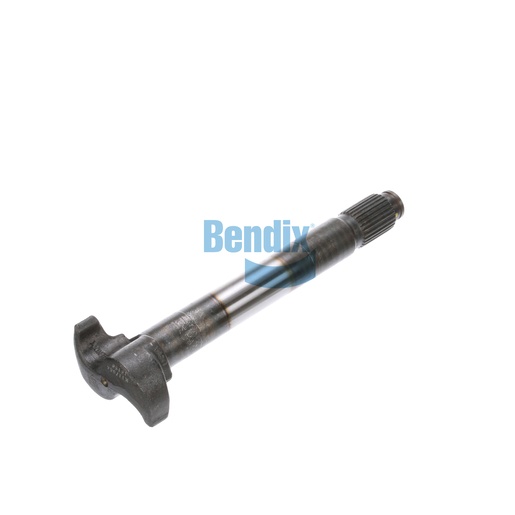

Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Camshaft is engineered to deliver superior performance in your vehicle's braking system, specifically for drum brakes. This essential component is manufactured in the United States and features a counterclockwise rotation, making it ideal for various brake configurations. With a length of 11.625 inches and a spline diameter of 1.50 inches with 28 teeth, it is designed for seamless integration and reliable operation. Weighing only 7.97 pounds, this camshaft combines strength and lightweight design, ensuring it can handle the demands of heavy-duty applications. Its precision engineering and high-quality materials contribute to long-lasting performance and reliability. For genuine Bendix OEM parts, look no further than Source One Parts Center, your trusted provider for high-quality commercial vehicle components.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Height
109.0 mm (4.29 in)
Width
109.0 mm (4.29 in)
Camshaft Length (Head to Retaining Ring Groove) [IN]
11.625
Length
295.0 mm (11.61 in)
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Head Type
Trim
Country of Origin
United States
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
7.97 lb
