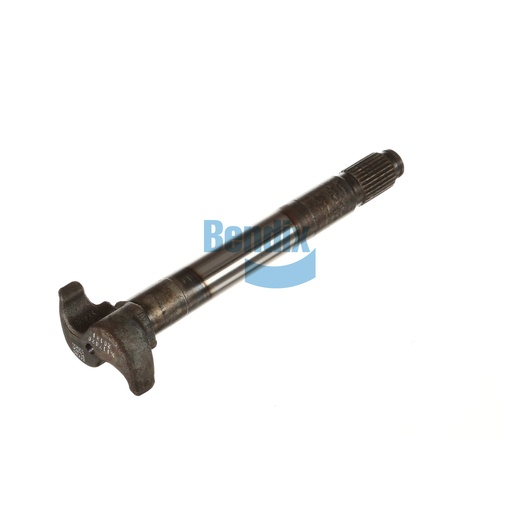

K117620N
Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Camshaft is an essential part of the Bendix foundation drum brake system, designed to optimize braking performance by translating the driver's input into effective braking force. With a counterclockwise rotation and a spline diameter of 1.50 inches with 28 teeth, this camshaft is engineered for durability and reliability in demanding conditions. Its precise design ensures smooth operation and optimal force distribution, critical for maintaining safety and control while driving. This component is vital for the overall efficiency of your braking system, making it a key element in any commercial vehicle. For authentic Bendix OEM parts, Source One Parts Center is your trusted source for quality and performance.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Height
109.0 mm (4.29 in)
Width
109.0 mm (4.29 in)
Camshaft Length (Head to Retaining Ring Groove) [IN]
12.375
Length
314.0 mm (12.36 in)
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Country of Origin
United States
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
10.58 lb
