$47.95
$57.54
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

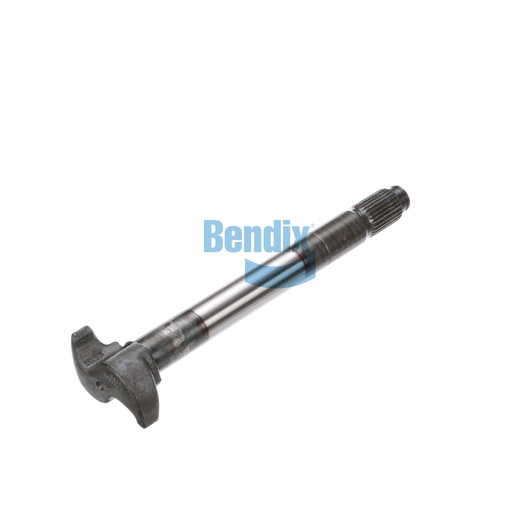

The Bendix Camshaft is engineered for precision and reliability, making it a crucial component of your commercial truck's foundation drum brake system. This camshaft features a counterclockwise rotation with a spline diameter of 1.50 inches and 28 splines, ensuring a secure fit during operation. With a length of 13.625 inches, it is designed to provide optimal mechanical leverage for effective braking performance. Weighing in at 9.07 pounds, this camshaft balances durability and lightweight design, suitable for heavy-duty applications. High-quality construction ensures that it can withstand the stresses of routine braking, providing confidence and safety on the road. Trusting Bendix means investing in reliable performance. Source One Parts Center is the ultimate destination for genuine Bendix parts, ensuring you receive the best in quality and service.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Height
109.0 mm (4.29 in)
Width
109.0 mm (4.29 in)
Camshaft Length (Head to Retaining Ring Groove) [IN]
13.625
Length
346.0 mm (13.62 in)
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Country of Origin
United States
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
9.07 lb
