$72.95
$87.54
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

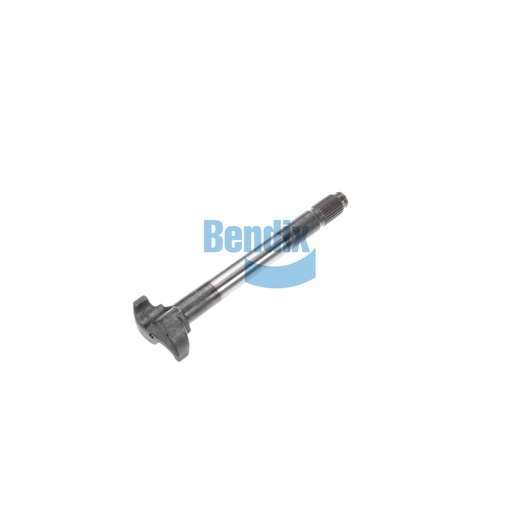

The Camshaft is a vital component in the braking system of commercial trucks, specifically designed to ensure effective and reliable brake operation. This part is crafted to meet the rigorous demands of heavy-duty applications, featuring a counterclockwise rotation and a robust design that supports optimal performance. With a spline diameter of 1.50 inches and built to last, it plays a crucial role in the braking process. For those seeking genuine Bendix OEM parts, Source One Parts Center is your best option for quality and authenticity.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Height
109.0 mm (4.29 in)
Width
109.0 mm (4.29 in)
Camshaft Length (Head to Retaining Ring Groove) [IN]
13.625
Length
346.0 mm (13.62 in)
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Head Type
Trim
Country of Origin
United States
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
8.93 lb
