K117636N

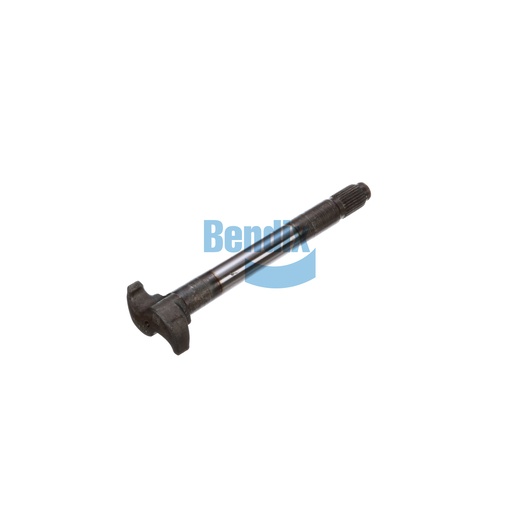

Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Camshaft from Bendix is a critical component in the foundation drum brake system, designed to optimize braking performance and reliability. Manufactured in the USA, this camshaft features a counterclockwise rotation and is engineered for durability, ensuring that it can withstand the demanding environments typical in commercial vehicle applications. With a length of 352 mm and a robust construction, this camshaft effectively translates pedal pressure into braking force, crucial for maintaining vehicle control. The precise design ensures compatibility with various Bendix brake components, making it an essential part of your vehicle's braking system. By choosing this camshaft, you are prioritizing safety and efficiency in your braking operations. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, providing you with high-quality components tailored to your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Height
109.0 mm (4.29 in)
Width
109.0 mm (4.29 in)
Camshaft Length (Head to Retaining Ring Groove) [IN]
13.875
Length
352.0 mm (13.86 in)
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Country of Origin
United States
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
10.58 lb
