K117637N
Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

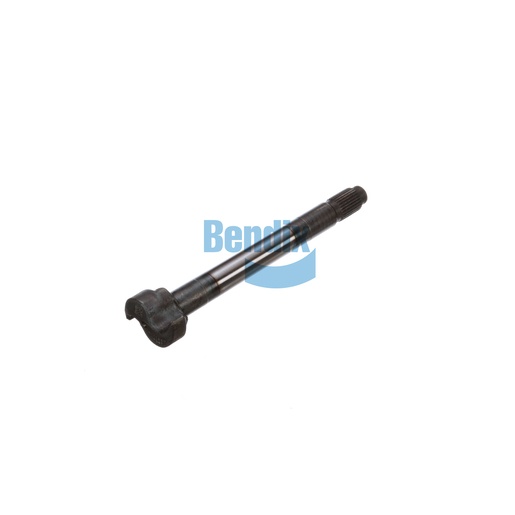

The Camshaft is a critical component of the braking system, designed to facilitate precise brake operation in commercial vehicles. This camshaft features a clockwise rotation and a length of 13.875 inches, making it ideal for various applications where durability and performance are key. With a robust spline diameter of 1.50 inches and 28 splines, it ensures a secure connection and effective force transfer during braking. The quality construction of this camshaft can withstand the rigors of heavy-duty use, ensuring reliability and longevity. As the best choice for acquiring genuine Bendix OEM parts, Source One Parts Center guarantees that your braking system will function safely and efficiently.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Height
109.0 mm (4.29 in)
Width
109.0 mm (4.29 in)
Camshaft Length (Head to Retaining Ring Groove) [IN]
13.875
Length
352.0 mm (13.86 in)
Harmonized System (HS) Code
870830
Rotation
Clockwise (CW)
Country of Origin
United States
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
10.58 lb
