$54.95
$65.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

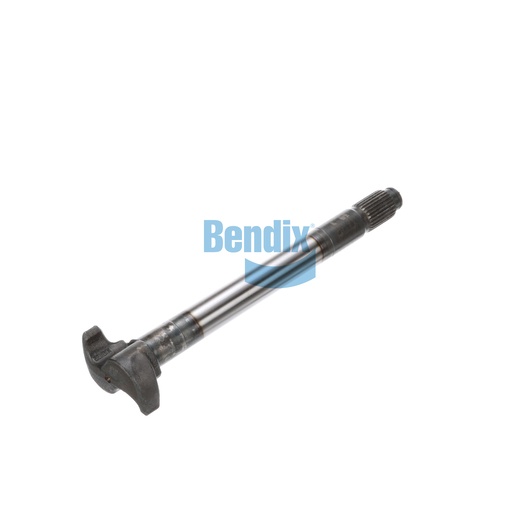

The Camshaft is an integral part of the drum braking system, playing a pivotal role in the effective operation of your commercial vehicle's brakes. This high-quality camshaft is engineered for precision and durability, featuring a counterclockwise rotation that ensures optimal brake activation. With a length of 15.125 inches and a spline diameter of Ø 1.50 inches, this camshaft is designed to fit a variety of applications, making it a versatile choice for fleet managers and operators. The robust construction ensures longevity and consistent performance, reducing the frequency of replacements and maintenance costs. When you choose to purchase your genuine Bendix OEM Camshaft from Source One Parts Center, you can rest assured that you are investing in a reliable product that meets the stringent quality standards required for commercial vehicles.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Height
109.0 mm (4.29 in)
Width
109.0 mm (4.29 in)
Camshaft Length (Head to Retaining Ring Groove) [IN]
15.125
Length
384.0 mm (15.12 in)
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Country of Origin
United States
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
9.87 lb
