K117668N
Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

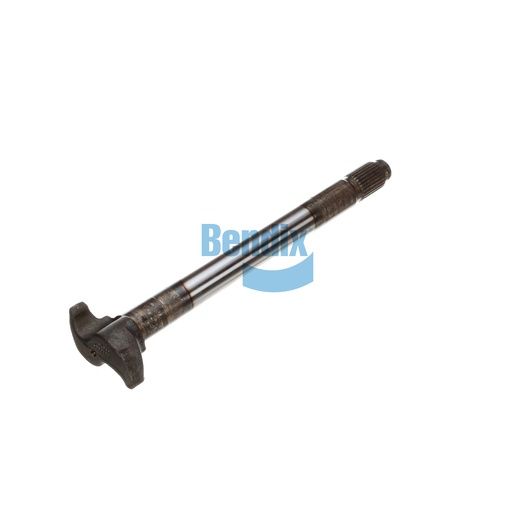

The Camshaft is a pivotal component in the braking system, responsible for translating the force from the brake pedal into braking action. This camshaft is designed for counterclockwise rotation and features a spline diameter of 1.50 inches with 28 teeth, ensuring compatibility with various Bendix brake systems. With a length of 16.250 inches, it is engineered for optimal performance and longevity, capable of withstanding the rigors of heavy-duty applications. Weighing in at 10.58 lbs, this component balances strength with manageability for easier installation. For all your Bendix OEM needs, Source One Parts Center is the ideal source, providing reliable parts to keep your fleet safe and efficient.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Height
109.0 mm (4.29 in)
Width
109.0 mm (4.29 in)
Camshaft Length (Head to Retaining Ring Groove) [IN]
16.250
Length
413.0 mm (16.26 in)
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Country of Origin
United States
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
10.58 lb
