K128740N
Camshaft
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

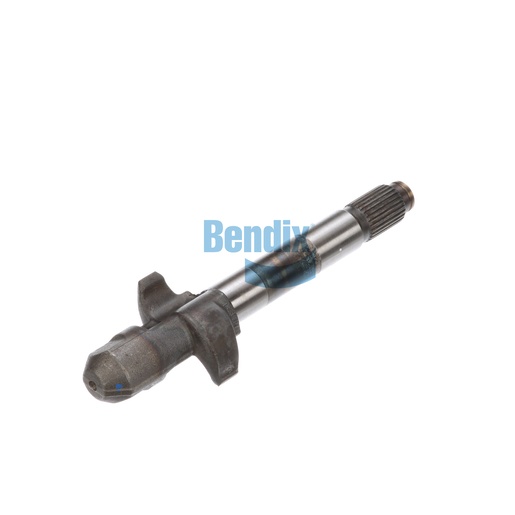

The Camshaft is a vital component in the foundation drum brake system, designed to deliver reliable performance and durability. With a tuned mass precision head and a counterclockwise rotation, this camshaft is engineered to provide optimal leverage for brake application. Measuring 8.750 inches from head to retaining ring groove, it ensures a perfect fit within the braking assembly. The camshaft features a robust spline diameter of 1.50 inches with 28 splines, ensuring a secure connection and efficient force transfer. Its sturdy construction allows it to withstand the rigors of commercial use, making it ideal for heavy-duty applications. For the best in genuine Bendix OEM parts, Source One Parts Center is your trusted source, ensuring your braking system operates at its highest efficiency.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Height
135.0 mm (5.31 in)
Width
135.0 mm (5.31 in)
Length
280.0 mm (11.02 in)
Camshaft Length (Head to Retaining Ring Groove) [IN]
8.750
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Head Type
Tuned Mass Precision
Country of Origin
United States
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
8.87 lb
