K140356N
Camshaft
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

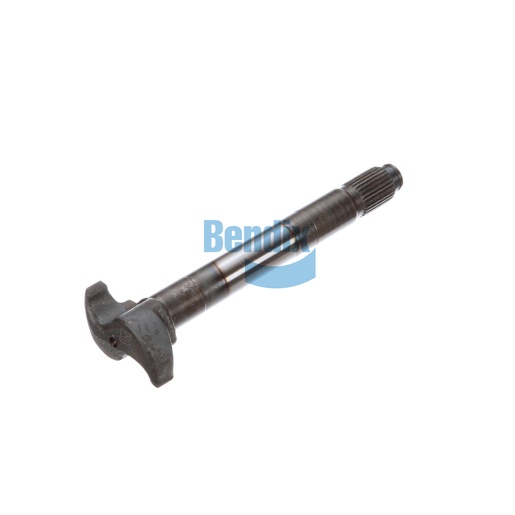

The Bendix Camshaft is a vital component designed to optimize the performance of your foundation drum brake system. Engineered for precision, this camshaft features a counterclockwise rotation and a spline diameter of 1.50 inches with 28 teeth, ensuring a perfect fit and efficient operation. With a length of 11.875 inches, it is specifically designed to handle the rigorous demands of heavy truck braking systems, contributing significantly to overall braking efficiency and safety. The use of high-quality materials in its construction enhances durability, making it a reliable choice for long-term use. This camshaft not only improves the responsiveness of your braking system but also minimizes wear on other brake components, promoting longevity. For those seeking top-tier performance in their commercial vehicles, the Bendix Camshaft stands out as a superb choice. Source One Parts Center is the leading destination for genuine Bendix OEM parts, ensuring you receive only the highest quality components for your vehicle.
SPECIFICATIONS
VMRS
013-017-014: Repair Kit - Camshaft, Position Not Specified
Camshaft Length (Head to Retaining Ring Groove) [IN]
11.875
Height
135.0 mm (5.31 in)
Width
135.0 mm (5.31 in)
Length
302.0 mm (11.89 in)
Harmonized System (HS) Code
870830
Rotation
Counterclockwise (CCW)
Country of Origin
United States
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
8.05 lb
