DESCRIPTION

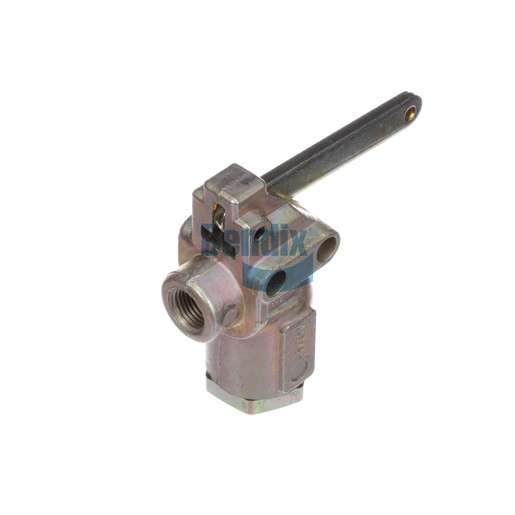

The Horn Valve from Bendix is a vital component in providing reliable operation of air horns in commercial vehicles. Designed with a lever actuation mechanism, this valve allows for easy control and functionality, ensuring that your air horn operates smoothly and effectively when needed. Its construction is robust, able to withstand high temperatures and demanding conditions, making it suitable for the rigors of the trucking industry. With precise dimensions for a perfect fit, this valve is essential for maintaining the integrity of your air horn system. For genuine Bendix OEM parts that guarantee performance and reliability, Source One Parts Center is the preferred choice for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
054-001-053: Valve - Air Horn, Single
Supply Port
1/4-18 NPT
Delivery Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
23.9 mm (0.94 in)
Height
59.4 mm (2.34 in)
Length
65.5 mm (2.58 in)
Harmonized System (HS) Code
848120
Mounting Location
Cab Mounted
Product Type
Hand Operated
Actuation
Lever
Country of Origin
United States
Mounting
Ø .203 IN (2x)
Weight
0.26 lb
