DESCRIPTION

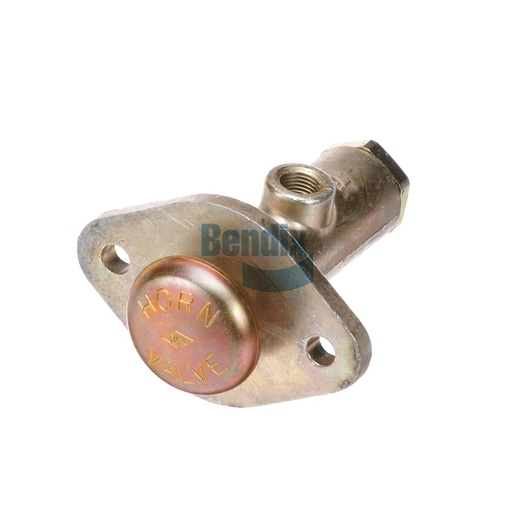

The Horn Valve from Bendix is a critical part for any commercial vehicle's air horn system, designed to provide reliable and responsive operation. This valve is engineered for foot operation, making it an intuitive addition to your vehicle's controls. With a compact design and robust construction, the horn valve is built to withstand the rigors of the road while maintaining consistent performance under various environmental conditions. Its easy installation process allows for quick replacements, ensuring your air horn system functions efficiently when you need it most. This valve's durability and reliability make it an essential part for fleet maintenance and individual truck owners alike. Source One Parts Center is the premier choice for genuine Bendix OEM parts, delivering quality products that enhance the safety and functionality of your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
054-001-053: Valve - Air Horn, Single
Supply Port
1/4-18 NPT
Delivery Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Height
47.8 mm (1.88 in)
Width
50.8 mm (2.0 in)
Length
82.0 mm (3.23 in)
Harmonized System (HS) Code
848120
Actuation
Button
Mounting Location
Floor Mounted
Product Type
Foot Operated
Button Text
HORN VALVE
Country of Origin
United States
Mounting
Ø .266 IN (2x)
Weight
0.53 lb
