$50.95
$61.14
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

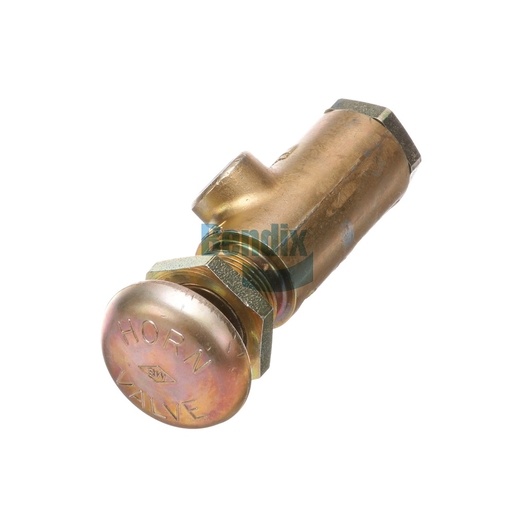

The Bendix Horn Valve is an essential component for any commercial truck, providing a reliable means to operate air horns effectively. This hand-operated valve is designed for easy panel mounting, ensuring quick access for the driver while enhancing the overall functionality of the vehicle's air system. With a maximum operating temperature of 200 °F (93 °C) and a minimum of -40 °F (-40 °C), this valve is built to perform under extreme conditions, making it ideal for various applications in the trucking industry. The robust construction ensures longevity and dependable operation, reducing the need for frequent replacements and maintenance. Its compact size, with a net weight of only 0.2 kg (0.35 lb), adds minimal bulk to your vehicle. For premium Bendix OEM parts, Source One Parts Center offers the best selection and service for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
054-001-053: Valve - Air Horn, Single
Supply Port
1/4-18 NPT
Delivery Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/4-20 UNEF-3A
Width
31.8 mm (1.25 in)
Length
33.3 mm (1.31 in)
Height
82.0 mm (3.23 in)
Harmonized System (HS) Code
848120
Actuation
Button
Button Text
HORN VALVE
Product Type
Hand Operated
Mounting Location
Panel Mounted
Country of Origin
United States
Weight
0.35 lb
