228928N

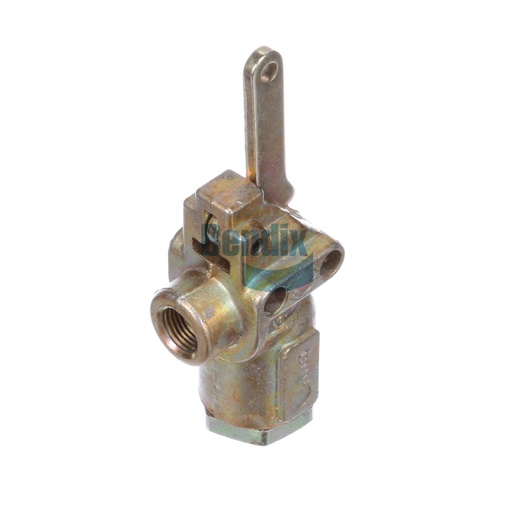

Horn Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Horn Valve is crucial for the operation of your vehicle's air horn system, designed to provide a powerful sound for signaling and safety. This valve is constructed with durable materials to withstand the harsh conditions of commercial trucking, ensuring reliable performance over time. With a maximum operating temperature of 200°F, it is engineered for high efficiency and responsiveness. The valve's design allows for straightforward installation and maintenance, making it an ideal choice for truck operators looking to enhance their vehicle's safety features. Source One Parts Center is an excellent choice for purchasing genuine Bendix OEM parts, ensuring you get the quality and performance your truck deserves.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
054-001-053: Valve - Air Horn, Single
Supply Port
1/4-18 NPT
Delivery Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
23.9 mm (0.94 in)
Length
32.5 mm (1.28 in)
Height
84.8 mm (3.34 in)
Harmonized System (HS) Code
848120
Mounting Location
Cab Mounted
Product Type
Hand Operated
Actuation
Lever
Country of Origin
United States
Mounting
Ø .203 IN (2x)
Weight
0.24 lb
