229924N

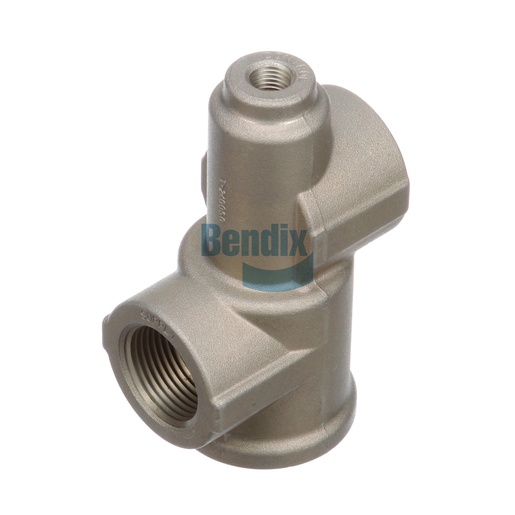

Air Starter Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Air Starter Valve is a critical component designed to ensure reliable operation of air starter systems in heavy-duty vehicles. Weighing only 0.9 lbs, this valve features a robust design that withstands harsh conditions while delivering consistent performance. Its advanced engineering allows for precise control over air delivery, enhancing the efficiency and reliability of your vehicle's starting system. This valve is easy to install and compatible with various applications, making it an ideal choice for fleet operators. For top-quality Bendix OEM parts that ensure your vehicle runs smoothly, Source One Parts Center is the best place to purchase.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
032-004-034: Starter Assembly - Air
Delivery Port
1-11 1/2 NPT
Supply Port
1-11 1/2 NPT
Control Port
1/4-18 NPT
Height
122.2 mm (4.81 in)
Closing Pressure
16 PSI
Maximum Operating Temperature
200 °F (93 °C)
Width
55.6 mm (2.19 in)
Length
75.4 mm (2.97 in)
Opening Pressure
76 PSI
Harmonized System (HS) Code
848120
Vent
Rubber Boot
Country of Origin
United States
Weight
0.9 lb
