DESCRIPTION

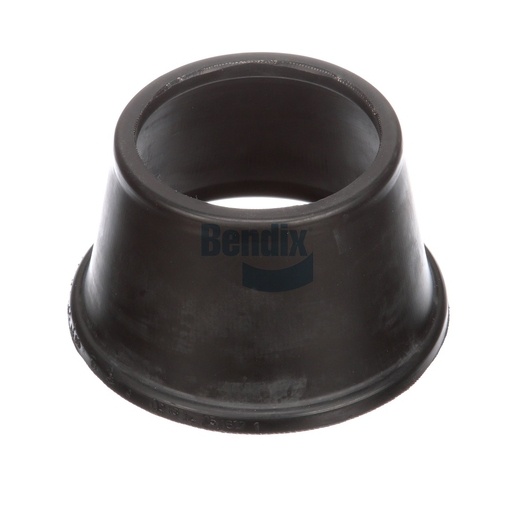

The Diaphragm from Bendix is a vital component in air chambers, designed to enhance the performance and reliability of your vehicle's braking system. This diaphragm is crafted from high-quality materials to ensure durability and longevity, capable of withstanding the pressures and conditions of heavy-duty operations. Weighing just 0.1 kg, it is lightweight yet robust, making it easy to install while maintaining the necessary strength for effective braking. Its design allows for efficient air pressure regulation, ensuring that your vehicle's brakes respond promptly and reliably when needed. Ideal for both fleet maintenance and individual repairs, this diaphragm is essential for maintaining optimal brake performance. Source One Parts Center is your best choice for purchasing genuine Bendix OEM parts, providing quality and reliability for your commercial vehicle.
SPECIFICATIONS
VMRS
013-002-152: Diaphragm - Air Chamber, Rear Axle
Width
131.0 mm (5.16 in)
Height
131.1 mm (5.16 in)
Length
74.7 mm (2.94 in)
Harmonized System (HS) Code
870739,401699
Country of Origin
India
Weight
0.24 lb
