$9.49
$11.39
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

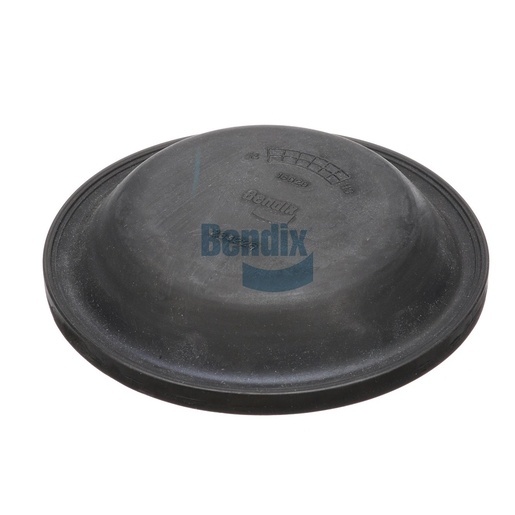

The Diaphragm from Bendix is a critical component designed for use in air chambers, playing an essential role in maintaining the integrity of the braking system. This diaphragm is made from high-quality materials that ensure durability and a long service life, even in demanding conditions. Weighing just 0.22 lbs, it is lightweight yet robust, allowing for easy installation and maintenance. The design of this diaphragm allows for effective pressure containment, enhancing brake responsiveness and safety. Its compatibility with various Bendix systems makes it a versatile choice for your commercial vehicle. For those seeking genuine Bendix OEM parts, Source One Parts Center is the leading source for quality and reliable components.
SPECIFICATIONS
VMRS
013-004-007: Diaphragm - Spring Parking Brake
Length
140.0 mm (5.51 in)
Width
140.0 mm (5.51 in)
Height
30.0 mm (1.18 in)
Harmonized System (HS) Code
401699
Country of Origin
India
Weight
0.22 lb
