242488

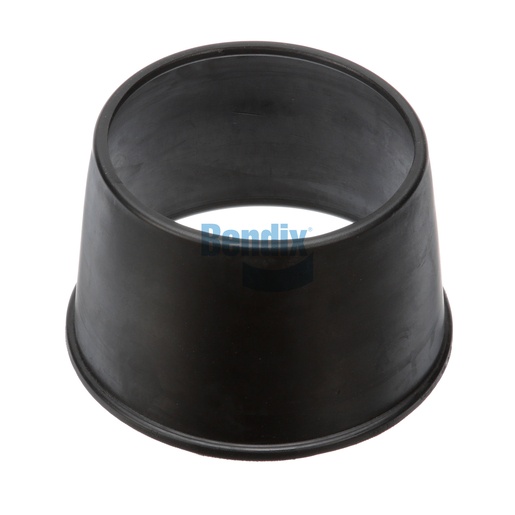

Diaphragm
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Diaphragm is an integral part of the air chamber system, providing essential performance for your braking system. Weighing 0.77 pounds, this diaphragm is designed to withstand extreme temperatures and pressures, ensuring reliable operation under various conditions. Its robust construction allows it to maintain proper air pressure and support consistent braking performance, which is critical for the safety of heavy-duty vehicles. With easy installation, it enhances the efficiency of your air brake system. Source One Parts Center is the trusted source for all your Bendix OEM parts needs, ensuring you receive high-quality components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-002-152: Diaphragm - Air Chamber, Rear Axle
Harmonized System (HS) Code
401699
Country of Origin
India
Weight
0.77 lb
