I85698

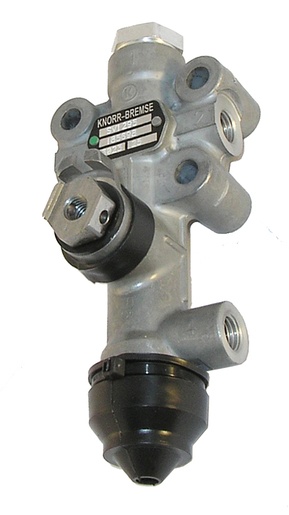

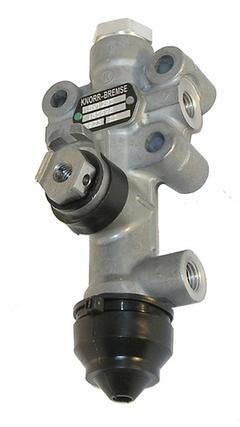

Levelling Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Optimize the air delivery and control in your commercial truck with the Bendix Levelling Valve. This high-performance component is engineered to maintain the ideal height of your vehicle's suspension system, ensuring stability and comfort during operation. With its flat lever style and precise air inlet and signal ports, this levelling valve delivers efficient and responsive adjustments to your suspension settings, enhancing ride quality and load distribution. Constructed in Hungary, it features robust materials that withstand extreme conditions, making it ideal for heavy-duty applications. The compact design, measuring 72.5 mm in width and 160.5 mm in height, allows for easy installation in tight spaces. Trust Source One Parts Center for your Bendix OEM parts, where quality and customer service come together for an exceptional shopping experience.
SPECIFICATIONS
VMRS
016-008-023: Leveling Valve
Height
160.5 mm (6.32 in)
Datum adjustment [deg.]
19,5
Air Delivery port(s) size
21: M12x1,5
Length without lever
68
Length
68.0 mm (2.68 in)
Width
72.5 mm (2.85 in)
Harmonized System (HS) Code
848120
Lever style
Flat
Country of Origin
Hungary
Mounting position
Left
Air Inlet port(s) size
M12x1,5
Air Signal port(s) size
M12x1,5
Flow characteristic number
N2
Height limitation [deg.]
Not included
Height limitation port(s) size
Not included
Lever length [mm]
Not included
Weight
0.74 lb
