$154.95
$185.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

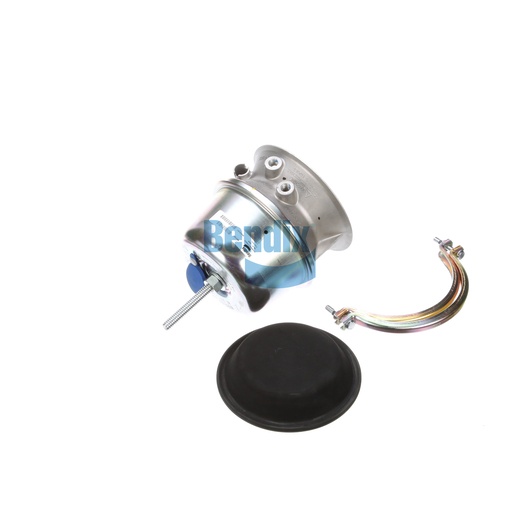

The Bendix Spring Brake Piggyback Kit is designed for optimal performance and reliability in commercial vehicle braking systems. This kit combines both spring brake and service brake functions into one assembly, making it a practical choice for maintenance and upgrades. With a total weight of 9.5 kg, it is engineered to handle rigorous conditions while providing consistent braking action. The durable construction ensures that it can withstand extreme temperatures and heavy-duty use, contributing to the overall safety of your vehicle. By integrating this kit into your braking system, you enhance reliability and performance, ensuring effective stopping power when you need it most. Source One Parts Center is the best choice for acquiring genuine Bendix OEM parts, ensuring that every component meets the highest standards of quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
0.00
VMRS
013-004-001: Spring Brake (Piggy Back) Assembly
Maximum Operating Temperature
175 °F (79 °C)
Stroke
3.00 IN (76 MM)
Parking Port (12)
3/8-18 NPT
Service Port (11)
3/8-18 NPT
Harmonized System (HS) Code
841290
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Brand
SB-4
Chamber Type / Size
T36/36
Weight
20.88 lb
