DESCRIPTION

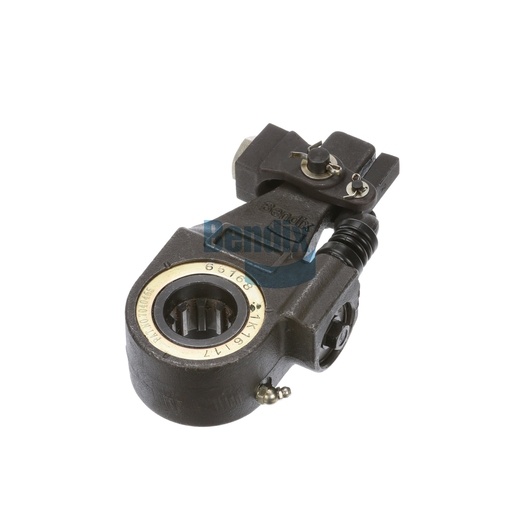

The Bendix automatic slack adjuster is designed to enhance the performance of your truck's brake system by automatically adjusting to ensure optimal brake shoe contact and consistent braking force. This component is critical for maintaining effective braking performance, particularly in demanding driving conditions. With a gross weight of 3.5 kg (7.69 lb) and a torque rating of 20,000 IN LBS, it delivers the strength and reliability needed for heavy vehicles. The slack adjuster's easy-on clevis style and robust construction provide straightforward installation and maintenance, reducing downtime and increasing productivity. Choose Source One Parts Center for authentic Bendix OEM parts, ensuring your truck remains equipped with the best components available.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Adaptor Length
.78 IN (19.8 MM)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Adaptor Size
1/2-20 UNF-2B
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Lube Fitting Type
45° Elbow
Arm Length 1
5.00 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Clevis / Yoke Style
Easy-On (EO)
Product Type
Link Style
Arm Offset
No Offset
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
7.69 lb
