FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

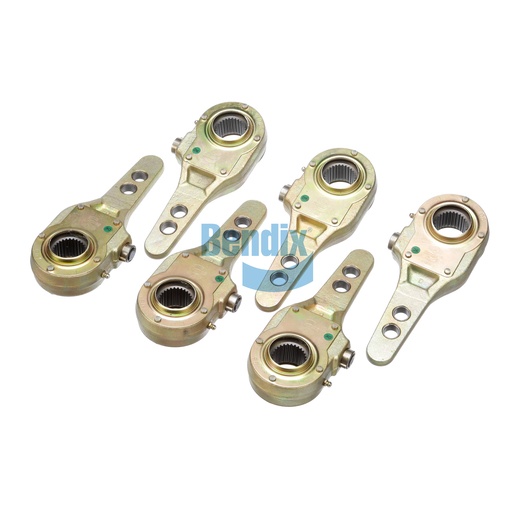

The Slack Adjuster (Manual) is a crucial component in the braking system of commercial vehicles, specifically designed to ensure optimal brake performance by maintaining proper slack in the brake system. This manual adjuster allows for easy adjustments to compensate for wear in the brake components, ensuring that brakes remain effective and responsive. Its robust construction provides durability, making it suitable for the demanding conditions of heavy-duty applications. This component is essential for fleet operators looking to enhance the reliability and safety of their vehicles. The Slack Adjuster is engineered for easy installation and maintenance, which translates into lower operational costs and increased uptime. For sourcing genuine Bendix OEM parts, Source One Parts Center is your trusted partner, guaranteeing authentic components that meet the highest quality standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
26,000 IN LBS
Arm Length 2
5.00 IN
Arm Length 1
6.00 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Manual - Type 26
Arm Offset
No Offset
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .625 IN (Ø 15.9 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
4.3 lb
