101216N

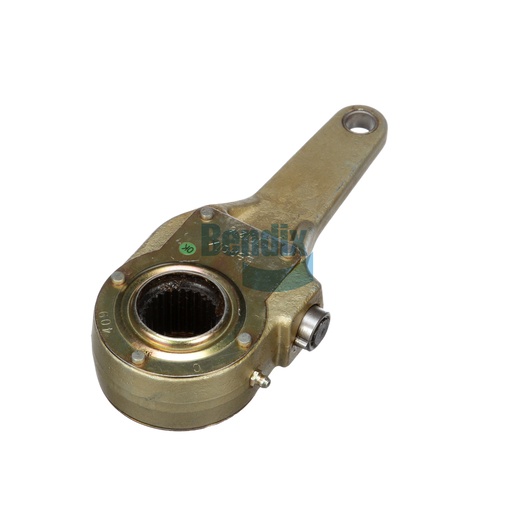

Slack Adjuster (Manual)
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$109.95
$131.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix manual slack adjuster is an essential part of any commercial vehicle's braking system, ensuring that brakes are properly adjusted for optimal performance. Built with precision engineering, this adjuster has a torque rating of 30,000 in-lbs and is designed to withstand temperatures ranging from -40°F to 158°F. Its robust design and dimensions make it suitable for various brake configurations, allowing for easy installation and maintenance. The slack adjuster's functionality helps reduce wear on brake components, promoting longer service life and improved safety on the road. For those looking for premium truck parts, Source One Parts Center is the best choice for sourcing genuine Bendix OEM parts that ensure your vehicle operates at peak performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
30,000 IN LBS
Arm Length 1
7.00 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Manual - Type 30
Arm Offset
No Offset
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .625 IN (Ø 15.9 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
7.14 lb
