DESCRIPTION

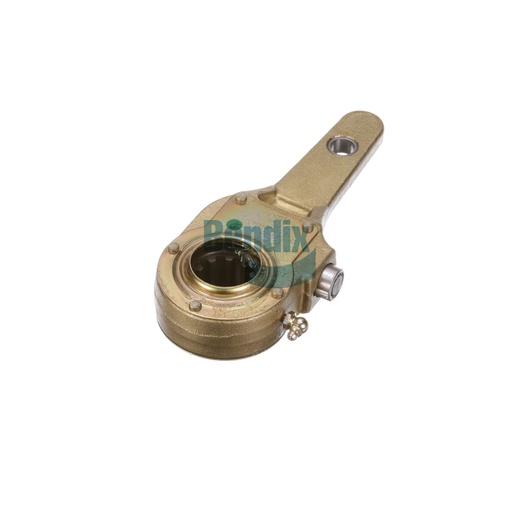

The Bendix Manual Slack Adjuster is an essential component in maintaining optimal brake performance in commercial vehicles. This high-quality part is designed for durability and reliability, allowing for easy manual adjustments to compensate for brake wear. With a torque rating of 26,000 inch-pounds, it is capable of handling significant loads, ensuring that your braking system operates efficiently. This slack adjuster functions effectively within a wide temperature range, from -40°F to 158°F, making it suitable for various environments. Its straightforward design makes it easy to install and maintain, providing peace of mind for fleet operators. For those in need of genuine Bendix OEM parts, Source One Parts Center is the best place to shop, offering a comprehensive range of high-quality components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
26,000 IN LBS
Arm Length 1
6.00 IN
Harmonized System (HS) Code
870830
Lube Fitting Type
90° Elbow
Country of Origin
China
Product Type
Manual - Type 26
Arm Offset
No Offset
Arm Bushing(s)
Ø .625 IN (Ø 15.9 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
4.1 lb
