102198

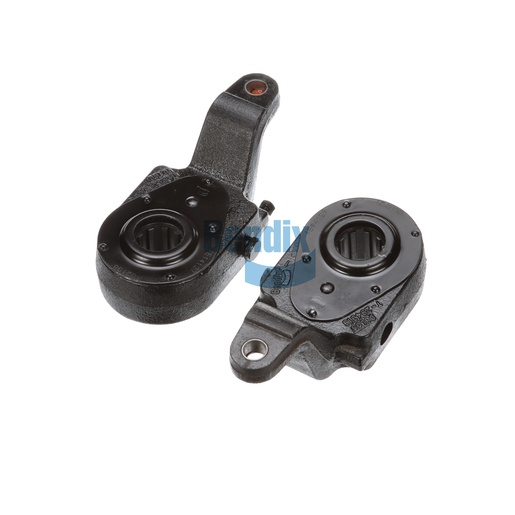

Slack Adjuster (Manual)
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Manual Slack Adjuster from Bendix is a critical component in maintaining your truck’s braking system, ensuring that your brake shoes are correctly adjusted for optimal performance. This robust adjuster features a torque rating of 27,000 in-lbs and is designed to withstand the rigors of heavy-duty use. With an arm length of 6.75 inches and a bushing diameter of 0.75 inches, this slack adjuster is engineered for easy installation and reliable operation, allowing for precise adjustments to your brake system. It plays a pivotal role in enhancing the safety and efficiency of your vehicle, providing peace of mind while on the road. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring your commercial vehicles remain in peak condition.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Maximum Operating Temperature
158 °F (70 °C)
Arm Offset
2.75 IN (Left Hand)
Torque Rating
27,000 IN LBS
Arm Length 1
6.75 IN
Harmonized System (HS) Code
870830
Product Type
Manual - Type 35
Country of Origin
United States
Arm Bushing(s)
Ø .75 IN (Ø 19 MM)
Spline Diameter - Teeth
Ø 1.75 IN - 10 Spline
Weight
14.95 lb
