102201

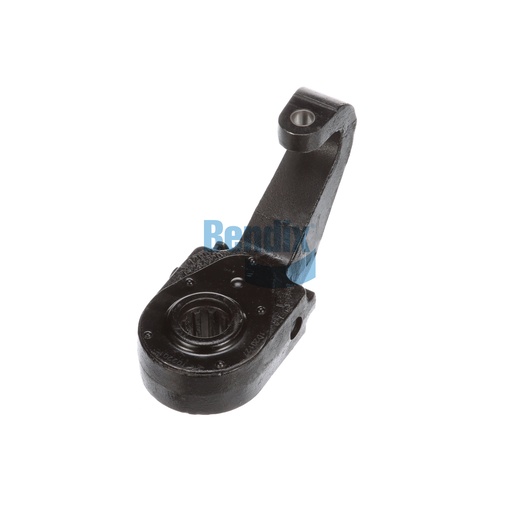

Slack Adjuster (Manual)
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Manual Slack Adjuster from Bendix is a vital component for ensuring the proper adjustment of brake shoes in commercial vehicles, contributing to the overall safety and performance of the braking system. This adjuster is engineered for durability and reliability, allowing for easy manual adjustments as needed to maintain optimal brake performance. Constructed with high-quality materials, it is designed to withstand the demanding conditions of heavy-duty applications, ensuring long-lasting performance. Weighing 18.43 lb, this slack adjuster is robust yet straightforward to install, making it a suitable choice for both professional mechanics and fleet maintenance teams. By keeping your brake system properly adjusted, you enhance safety and extend the life of your brake components. Choosing Bendix means investing in quality and performance, and Source One Parts Center is the ideal destination for all genuine Bendix OEM parts, ensuring you receive top-notch components for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
27,000 IN LBS
Arm Offset
4.75 IN (Right Hand)
Arm Length 1
6.75 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Manual - Type 35
Arm Bushing(s)
Ø .75 IN (Ø 19 MM)
Spline Diameter - Teeth
Ø 1.75 IN - 10 Spline
Weight
18.43 lb
